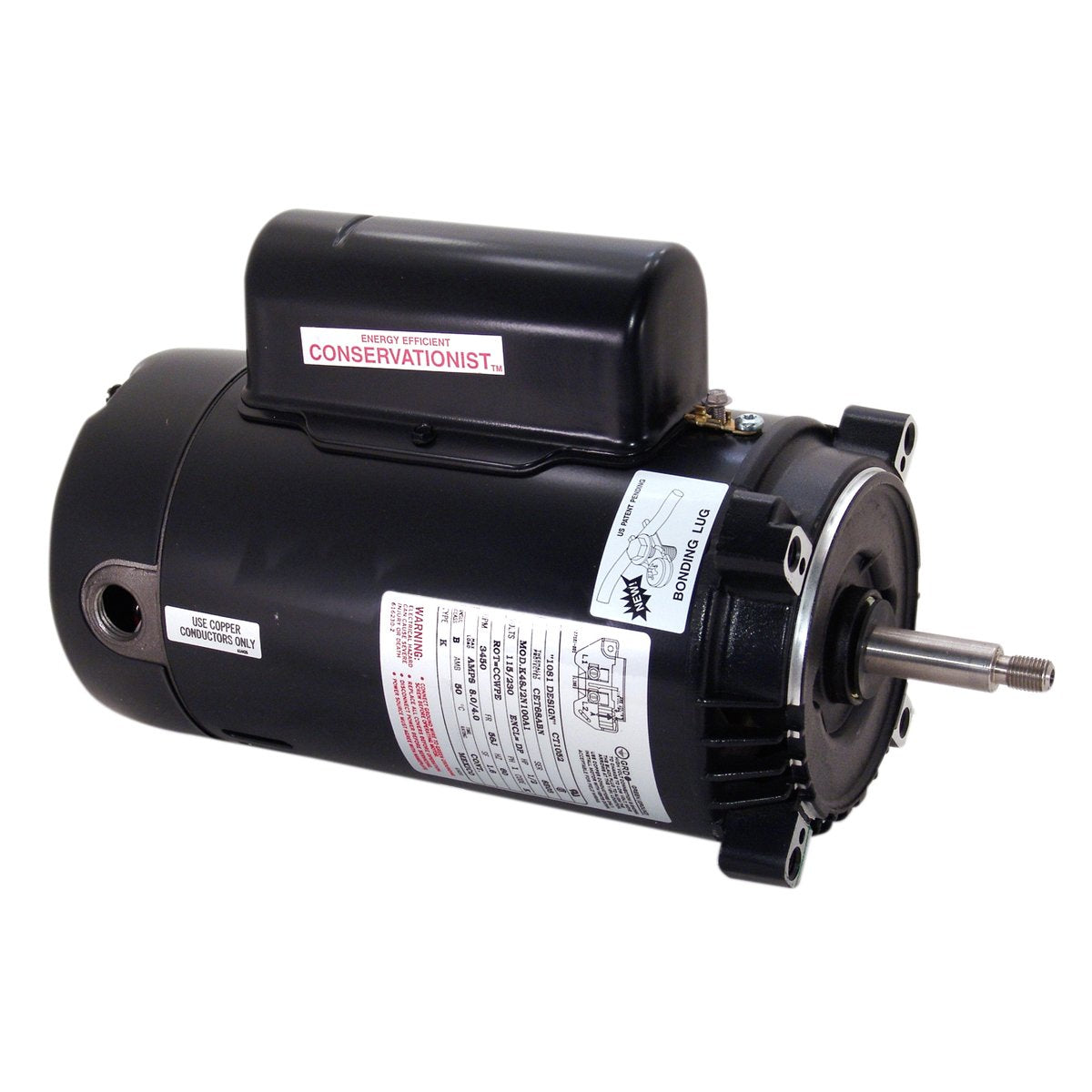

2.5 hp 3450rpm 56J Frame 230 Volts Swimming Pool Pump Motor UST1252

• 2.5 HP 3450 RPM 12.6-11.4 amps, 208-230V 60hz.
• Automatic Overload Protection - Service Factor 1.06
• Non-Reversible - CCW Rotation facing the shaft
• C-Face Mount, Round Body-no base
• 56-J Frame; 5/8" diameter threaded stainless steel shaft

Swimming pool pump motor. Commonly found on inground pool pumps such as Hayward Super Pump, Maxflo, Super II and many other pumps requiring a 56J frame motor.
Century motors are found on most swimming pool pumps. Standard 1081 pump duty motor. Stainless steel shaft. Sealed ball bearings.
Motor has 4 threaded bolt holes on face for mounting the pump to the motor. Bolt holes are 5 7/8" on center measured across the shaft. Wiring diagram on motor name plate.
1 year warranty

AO Smith/Century Models: K48N2N106, K48N2N106A, K48N2N106B, K48N2N106C, K48N2N106C2
US Electric Equivalent EUST1252
