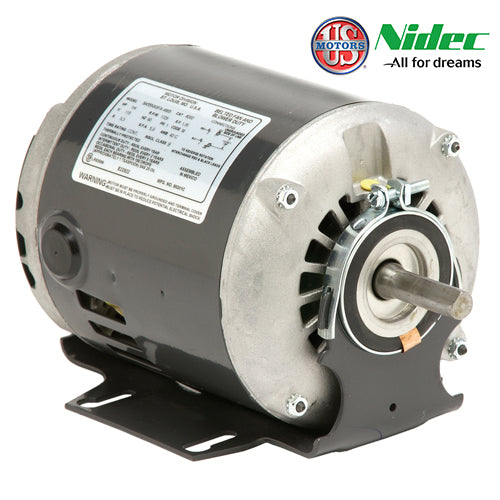

8100 1/3HP 1800 115/1/60 ODP 48 Belted Fan and Blower Single Speed RESILIENT BASE 1.35SF

8100 1/3HP 1800 115/1/60 ODP 48 Belted Fan and Blower Single Speed RESILIENT BASE 1.35SF

$298.94 CAD
$389.00 CAD $298.94 CAD
Sale Sold out
Model_Number: SA55SFB4866722B
PRODUCT NAME: .33 HP - ODP - 1725
PHASETYPE: 1_SPLIT PHASE
MOTOR ENCLOSURE: ODP
HORSEPOWER: .33
KILOWATTS: 0.3
POLES: 4
NUMBER SPEEDS: 1
RPM: 1725
HERTZ: 60
VOLTS PRIMARY: 115 V
VOLTS : 115
FRME : 48
STATOR DIAMETER: 5.5
STACK: 1.5
MOUNTING: RESILIENT
MOTOR TYPE: FHP
OPPOSITE END BEARING: 6203
SHAFT END BEARING: 6203
AMBIENT: 40
ROTATION: CCW LEAD END REV
SERVICE FACTOR: 1.35
SHIPPING WEIGHT: 15
THERMAL PROTECTION: AUTOMATIC RESET
BREAKDOWN TORQUE: 44.17
BREAKDOWN TORQUE UOM: OZFT
LOCKED ROTOR TORQUE: 19.19
LOCKED ROTOR TORQUE UOM: OZFT
INSULATION CLASS: B
KVA CODE LETTER: N
LOCKED ROTOR AMPS: 30.91
FULL LOAD AMPS PRIMARY: 6.4
SERVICE FACTOR AMPS PRIMARY: 7.0
