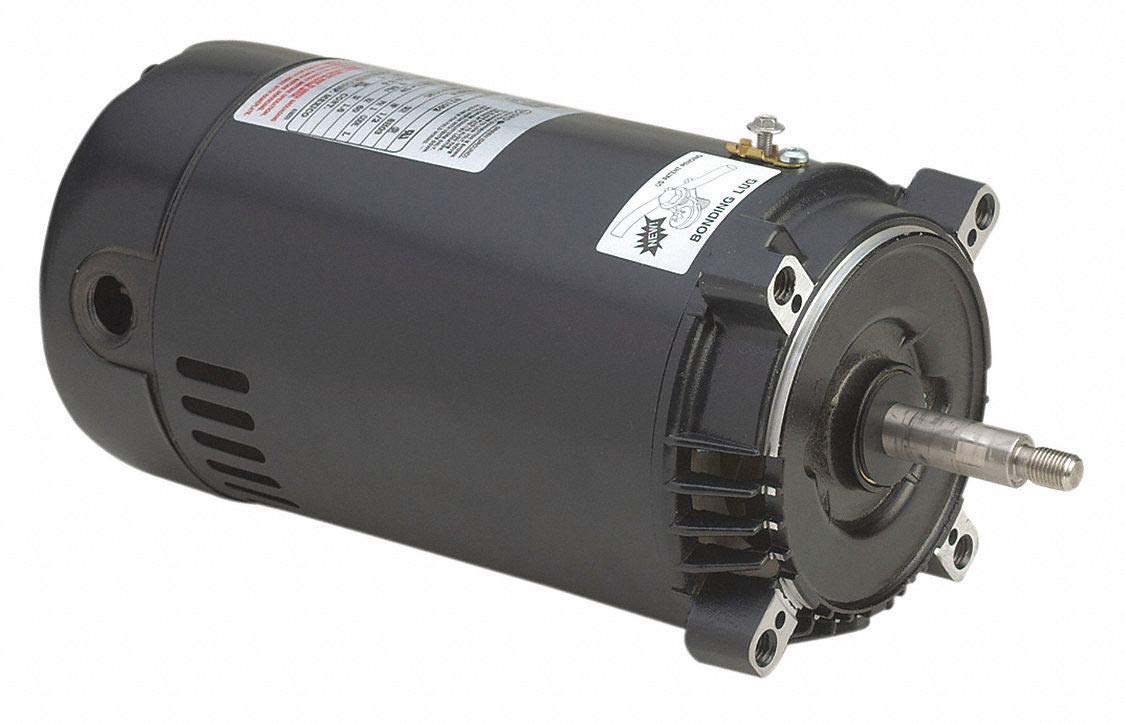

Century 1/2 HP Pool and Spa Pump Motor, Capacitor-Start, 3450 Nameplate RPM, 115/230 Voltage, 56J Frame - ST1052

ST1052 Century Pool Pump Filter Motor

• 1/2 HP
• 3450 RPM
• 56J FRAME
• SINGLE PHASE
• ODP
• 230/115 VOLT
• 5.5/11.0 AMP
• CCW PUMP END
• AUTOMATIC OVERLOAD PROTECTION
• SINGLE SPEED
• SHAFT 5/8" X 2.562" THREADED (7/16")

**VARIABLE SPEED MOTOR REPLACEMENT EVC130

FEATURES:  Hayward, SP2600X5, Max-Flo SP2800X5 , NorthStar - Full Rate SP4005NS Magnum Nema-C Flange Pool filter Motor, all copper windings, NEMA 56C Face mount, Not reversible, Sealed ball bearings, Sealed switch, 50 degrees C ambient, 60 HZ, 303 stainless shaft, High service factor 1.6

Cross References: C48H2N109A2 C48H2N109A3 C48J2DA154 C48J2DB154 C48J2DB160A1 C48J2N102 C48J2N104 C48J2N105 C48J2N112 C48J2N116A1 C48J2N116A3 C48J2N116A7 C48J2N119 C48J2N121 C48J2N121A2 C48J2N122 C48J2N123 C48J2N125 C48J2N126 C48J2N130 S48H2N10 S48H2N102 S48H2N104 S48H2N113 S48H2N114 S48H2N120 S48H2N122 S48H2N122A3 S48H2N122A4 S48H2N122A5 164563 177481 B126 B136 B526 EB126 JD50FL1 SW2556 14290 15093 18330 82537 C1098 110281 M542 91721
