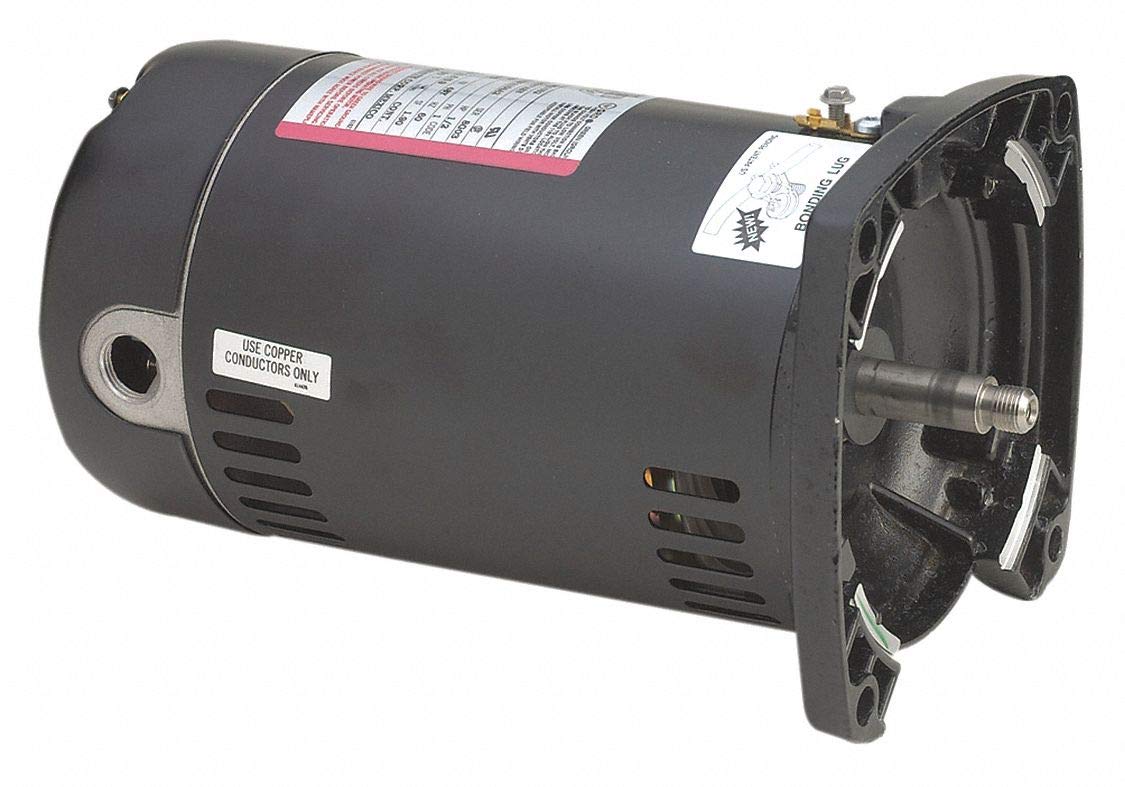

Century 3/4 HP Square Flange Pool Pump Motor, Capacitor-Start, 3450 Nameplate RPM, 115/230 Voltage, 48Y Fram - SQ1072

This 2-compartment, capacitor-start motor can be used as an equivalent replacement for most popular pool and spa manufacturers' pumps. Must equal or exceed service factor and HP for proper replacement. Auto thermal protection prevents motor failure due to overheating. Ball bearings. UL Recognized and CSA Certified.

Item: Square Flange Pool Pump Motor
Motor Application: Pump
Motor Sub Application: Pool and Spa Pump
Motor Design: Capacitor-Start
Motor Enclosure Design: Open Dripproof
HP: 3/4
Nameplate RPM: 3450
Frame: 48Y
Voltage: 115/230
Hz: 60
Phase: 1
Full Load Amps: 14.8/7.4
Motor Mounting Type: Face
Motor Thermal Protection: Auto
Ins. Class: B
Motor Service Factor: 1.65
Max. Ambient Temp.: 50 Degrees C
Motor Shaft Rotation: CCWSE
Shaft: Threaded 1/2-20 UNF-2A RH
Shaft Material: 303 Stainless Steel
Shaft Dia.: 5/8"
Motor Efficiency Group: Standard Efficient
RPM Range: 3001-3600
Design: Two Compartment
