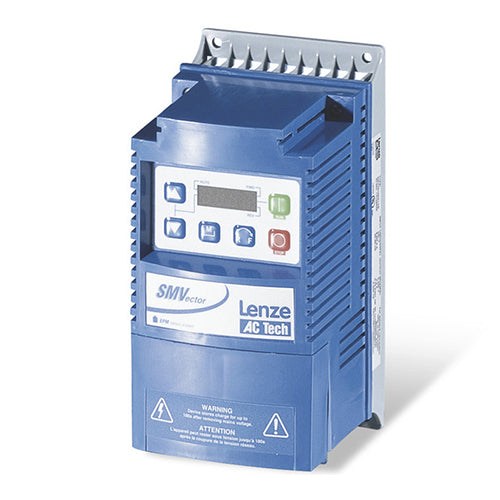

ESV752N02TXB SENSORLESS VECTOR 10HP / 240V, 3PH(i/p) / 29.0A(o/p) Cont. / NEMA1
ESV752N02TXB SENSORLESS VECTOR 10HP / 240V, 3PH(i/p) / 29.0A(o/p) Cont. / NEMA1
• Features : Dynamic Torque Response Two Independent Accel Ramps and two Independent Decel Ramps Linear, S-Type, Auxiliary Ramp-to-Stop Fixed Accel Boost for Improved Starting 500 Hz Output Frequency (1,000 Hz Optional) • Switching Frequency : 4, 6, 8, 10,12 or 16 kHz • Universal Logic Assertion (Selectable): Positive or Negative Logic Input • Braking Functions : DC Injection Braking Optional Regenerative Braking Over Temperature Protection • Speed Commands : Keypad Potentiometer Jog Floating Point Control & 8 Preset Speeds Voltage: Scalable 0 - 10 VDC Current: Scalable 4 - 20 mA • Process Control : PID Modes: Direct and Reverse Acting, sleep mode • Voltage Monitoring : High - Low DC Bus V Protection Low Line V Compensation • Current Monitoring : Motor Overload Protection Current Limiting Safeguard Phase Loss Protection Ground Fault Short Circuit Protection • Loss of Follower Management : Protective Fault Go to Preset Speed or Preset Setpoint Initiate System Notification
