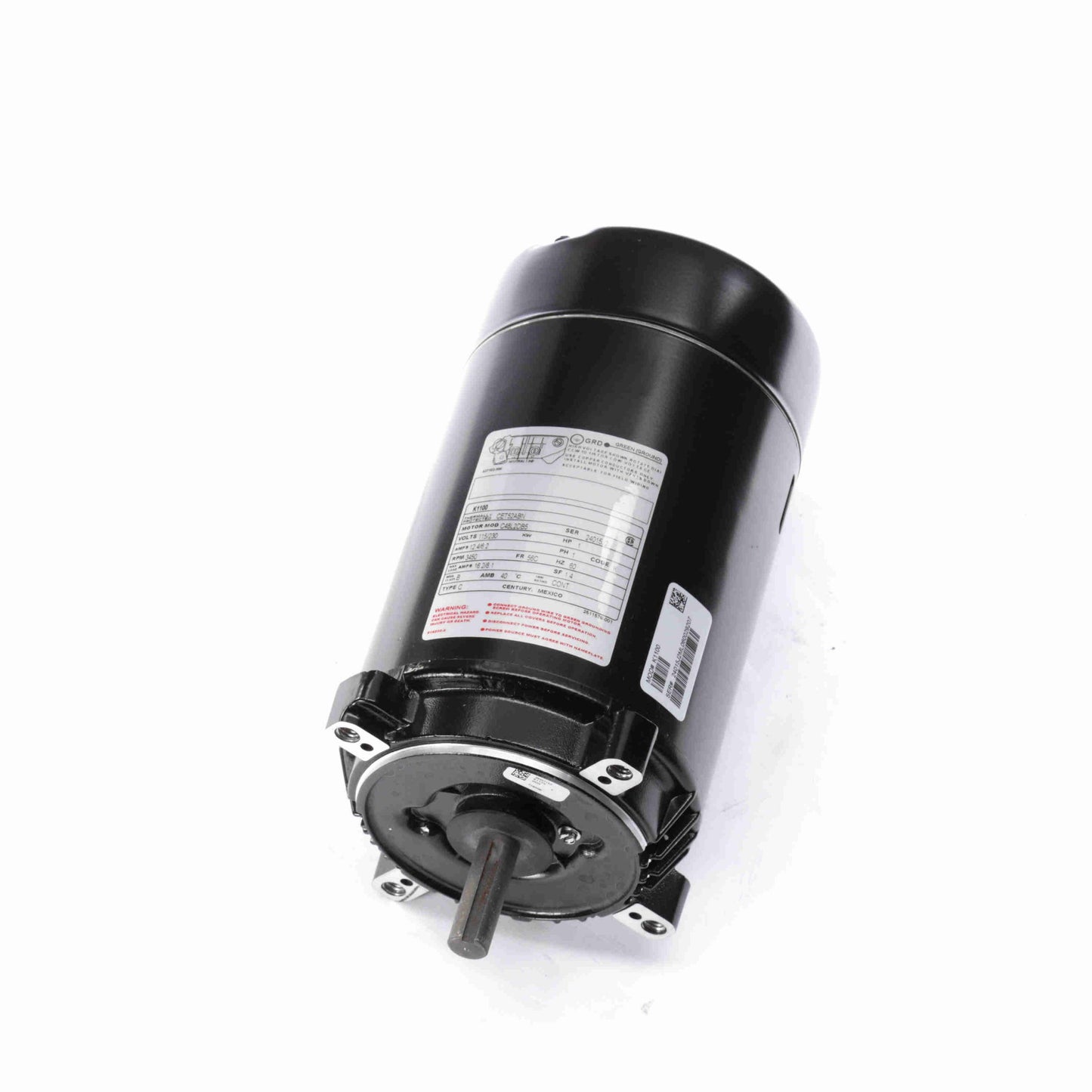

K1052 Century 1/2 HP 3600 RPM 115/230V 56C ODP (no base) Jet Pump Motor

• 1/2 hp 3600 RPM, 10.8/5.4 amps 115/230 Volts 60hz. Capacitor Start
• NEMA 56C frame, C-face, Keyed Shaft 5/8" Diameter x 1 7/8"
• Service Factor: 1.8, Overload protection = Auto
• No Base, Reversible rotation, Ball Bearings, Class B Insulation
• 1 Year Manufacture Warranty

Motor for pool and spa pumps requiring a single phase electric motor with a C-face mount.  Keyed shaft, Motor has 4 threaded bolt holes on face for mounting a pump or gear head to the motor. Bolt holes are 5 7/8" on center measured across the shaft. Wiring diagram on motor name plate. ODP = Open Drip Proof. K1052
