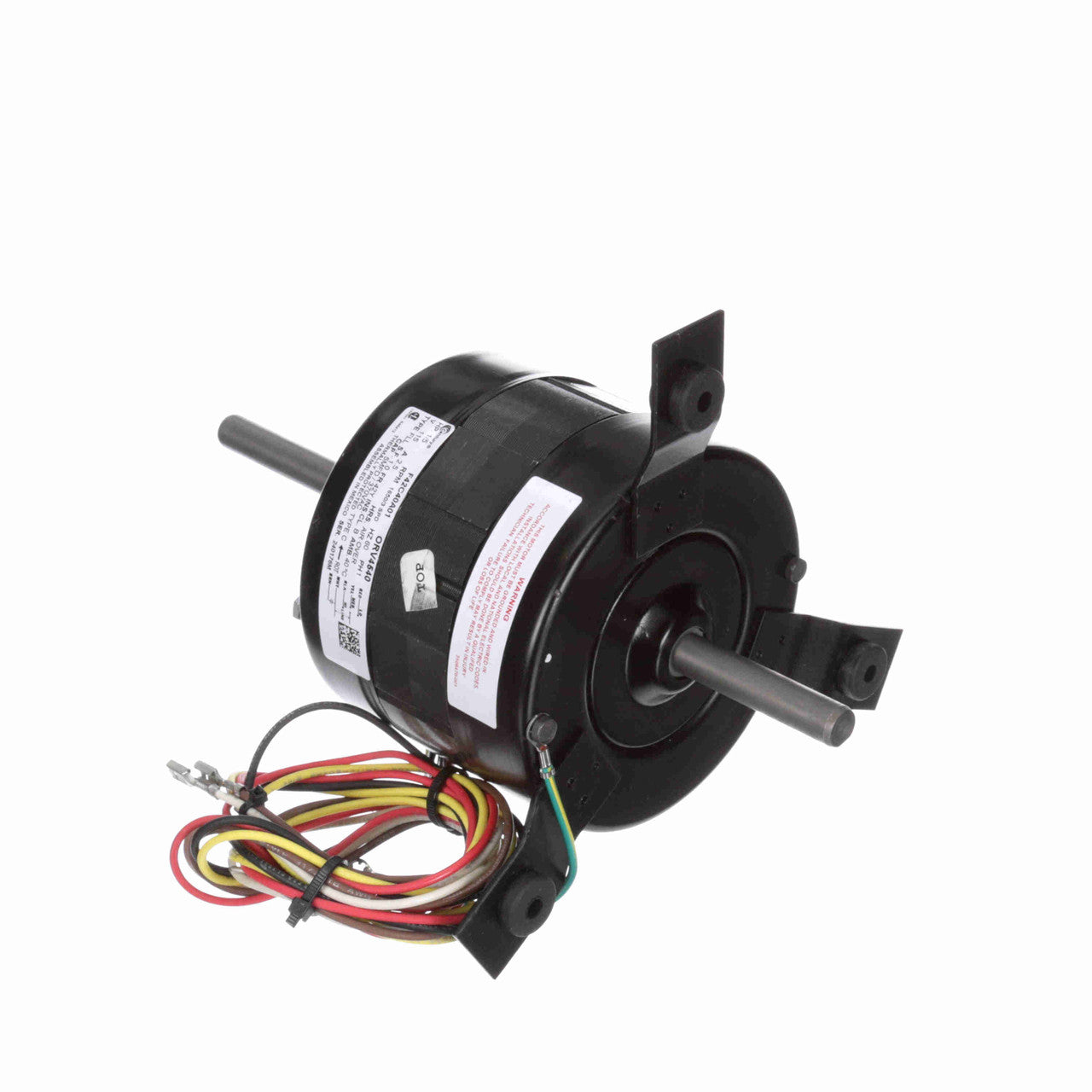

Replacement motor for 3105054.005, F42C40A61, F42E63A61, 1/5 HP 115V 1650RPM RV Air Conditioner Motor
Replacement motor for 3105054.005, F42C40A61, F42E63A61, 1/5 HP 115V 1650RPM RV Air Conditioner Motor
Regular price
$439.00 CAD
Regular price
$515.00 CAD
Sale price
$439.00 CAD
Unit price
per
Couldn't load pickup availability
- 1/5 HP, 2.5 Amps, 115 Volts
- 1650 RPM, 3-Speed; CCW Lead End Rotation
- Class B Insulation, 40°C Ambient
- 42" Leads with AMP PINS, 26" Leads with Female Spade Terminals
- Sleeve Bearings; Thermally Protected
- 1 Year Manufacture Warranty
- 5" Diameter - 42 Frame
- No bracket on motor, round body with 3 welded tabs - Lug Mount Lead End
- Open Shaft End and Lead End End-Frame, Semi-Enclosed Shell, Air Over
- 3 "Ear" Brackets with .56" dia. holes and grommets on 6" bolt circle, One extended stud on lead end
- Double Shaft: 4" x 1/2" x 2-1/2"
- Cross Ref: Dometic Duotherm 3105054.005. Also replaces F42B34A61, F42C40A61, F42C40A01, F42C61A61, F42E63A61, ORV4540
