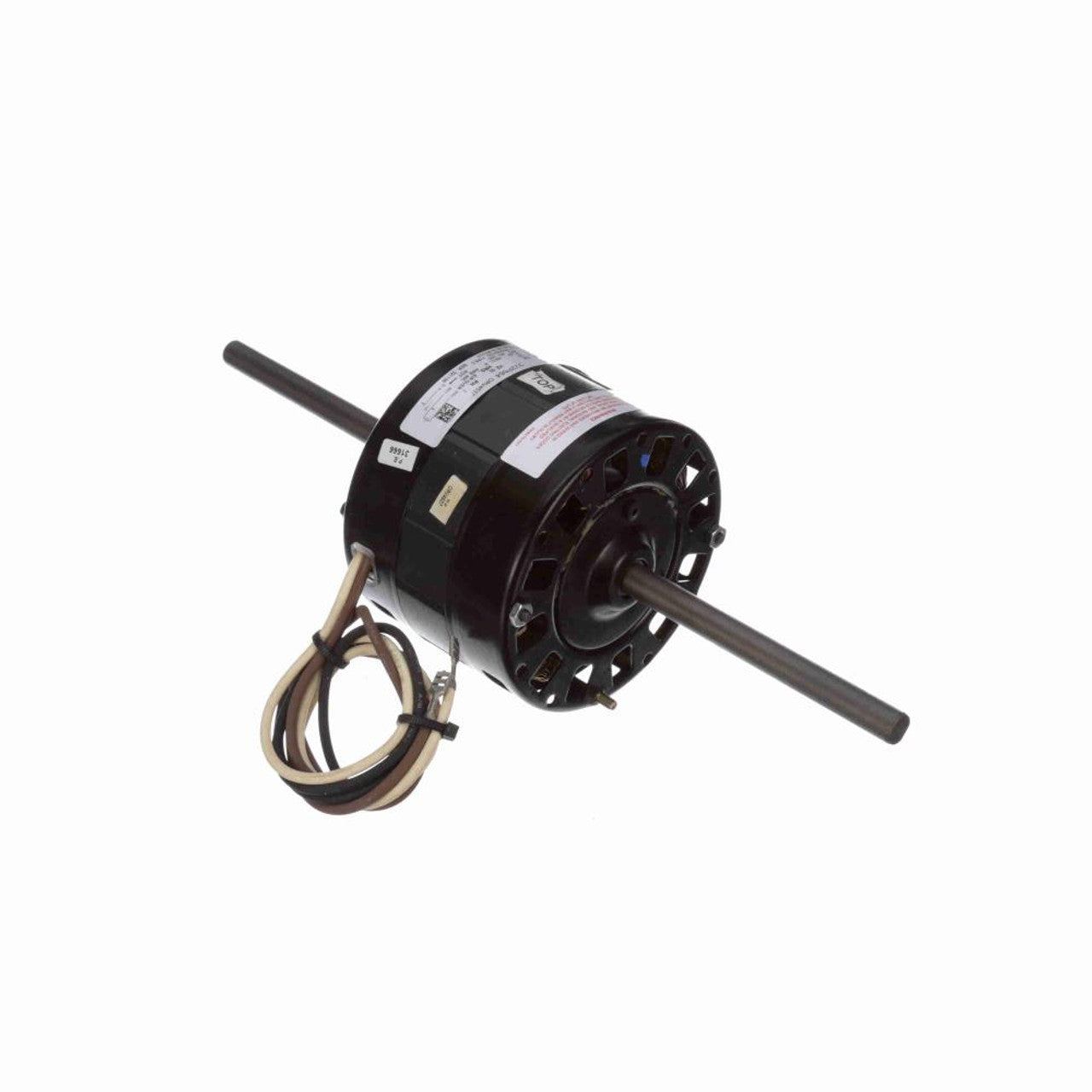

Replacement motor for Coleman 6747A311, 1/4 HP 115 Volt 1625 RPM RV Air Conditioner Motor
Replacement motor for Coleman 6747A311, 1/4 HP 115 Volt 1625 RPM RV Air Conditioner Motor
Regular price
$439.00 CAD
Regular price
$495.00 CAD
Sale price
$439.00 CAD
Unit price
per
Couldn't load pickup availability
1/4 HP, 2.8 Amps, 115 Volts
1625 RPM, 1-Speed; CW Lead End Rotation
Class A Insulation, 40°C Ambient
23" Leads
Sleeve Bearings; Thermally Protected
1 Year Manufacture Warranty
5" Diameter - 42 Frame
No bracket on motor, round body
Open Shaft End and Lead End End-Frame, Semi-Enclosed Shell, Air Over
Double Shaft: 5-1/2" x 1/2" x 5-1/4"
Two Extended Studs Lead End and Opposite Lead End
Motor has 2 studs on each side of the motor (opposite on each side, spaced 2.25" On Center) Diameter = 4.75"
Cross Ref: 322P664, 6747A311, ORV4537
1625 RPM, 1-Speed; CW Lead End Rotation
Class A Insulation, 40°C Ambient
23" Leads
Sleeve Bearings; Thermally Protected
1 Year Manufacture Warranty
5" Diameter - 42 Frame
No bracket on motor, round body
Open Shaft End and Lead End End-Frame, Semi-Enclosed Shell, Air Over
Double Shaft: 5-1/2" x 1/2" x 5-1/4"
Two Extended Studs Lead End and Opposite Lead End
Motor has 2 studs on each side of the motor (opposite on each side, spaced 2.25" On Center) Diameter = 4.75"
Cross Ref: 322P664, 6747A311, ORV4537
